“A work platform is perfect for working at height. Since people work on it, quality and stability are crucial.”
At HAB you will find first class and high quality aerial work platforms that differ from the standard. We attach great importance to a stable construction, ease of maintenance, a compact design and power. Quality components such as modern motors make electric platforms more efficient and our diesel devices are equipped with a soot particle filter with low emissions.
Telescopic stackers
| T540-180 | Technische Spezifikationen |
|---|---|

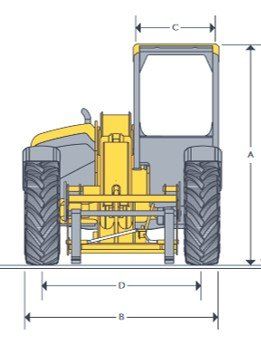

| Gesamthöhe I Max. hight | 2.59 m (A) |
| Gesamtbreite (über Reifen) I Max. width | 2.35 m (B) |
| Kabinen-Innenbreite I Cabin internal widht | 0.94 m (C) |
| Spurweite I Track width | 1.90 m (D) |
| Radstand I Wheelbase | 2.75 m (E) |
| Länge über Vorderräder I Length inkl. front wheels | 4.75 m (F) |
| Gesamtläge bis Gabelträger I Length inkl. fork carriage | 6.27 m (G) |
| Bodenfreiheit I Ground clearance | 0.40 m (H) |
| Länge Achsmitte über Schnellwechsler I Length quick hitch | 2.15 m (J) |
| Länge Achsnabenzentrum über Heck I Length axle hub | 1.37 m (K) |
| Wenderadius über Räder I Turning radius | 3.75 m |
| Gewicht I Weight | 11.380 kg |
| Reifen I Wheels | 15.5-25 |
| Max. Tragfähigkeit (e / l)* I Max. capacity | 4.000 kg I 4.000 kg |
| Nenntragfähigkeit bei max. Hubhöhe I Capacity in full lifting hight (e / l)* | 500 kg I 2.500 kg |
| Nenntragfähigkeit bei voller Reichweite I Capacity on full outreach (e / l)* | 0 kg I 550 kg |
| Hubhöhe I Lifting hight (e / l)* | 10.69 m I 17.51 m |
| Reichweite bei max. Hubhöhe I Outreach max. lifting hight (e / l)* | 6.92 m I 1.88 m |
| Max. Vorwärtsreichweite I Max. forward outreach (e / l)* | 10.47 m I 13.34 m |
©JCB

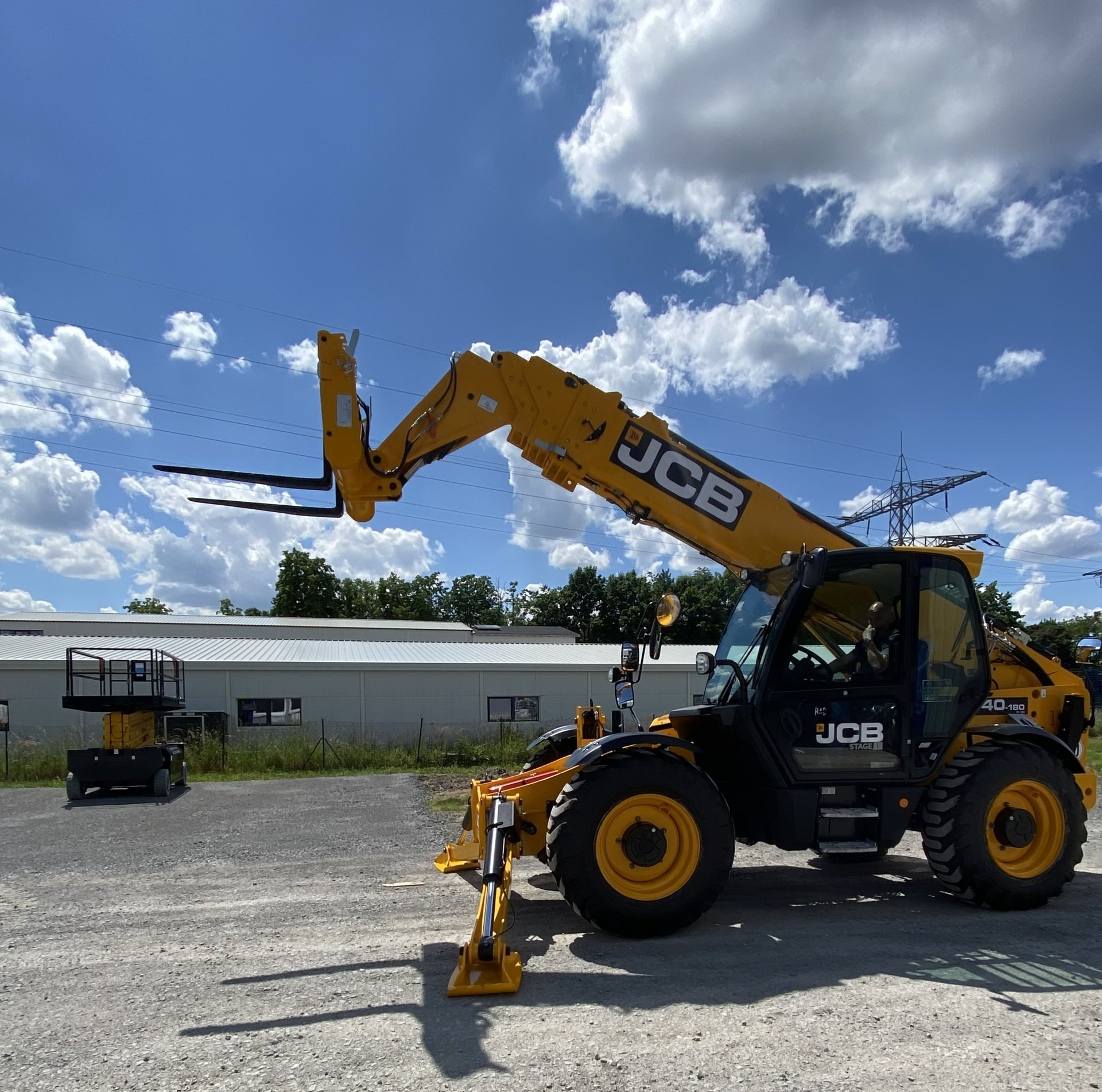

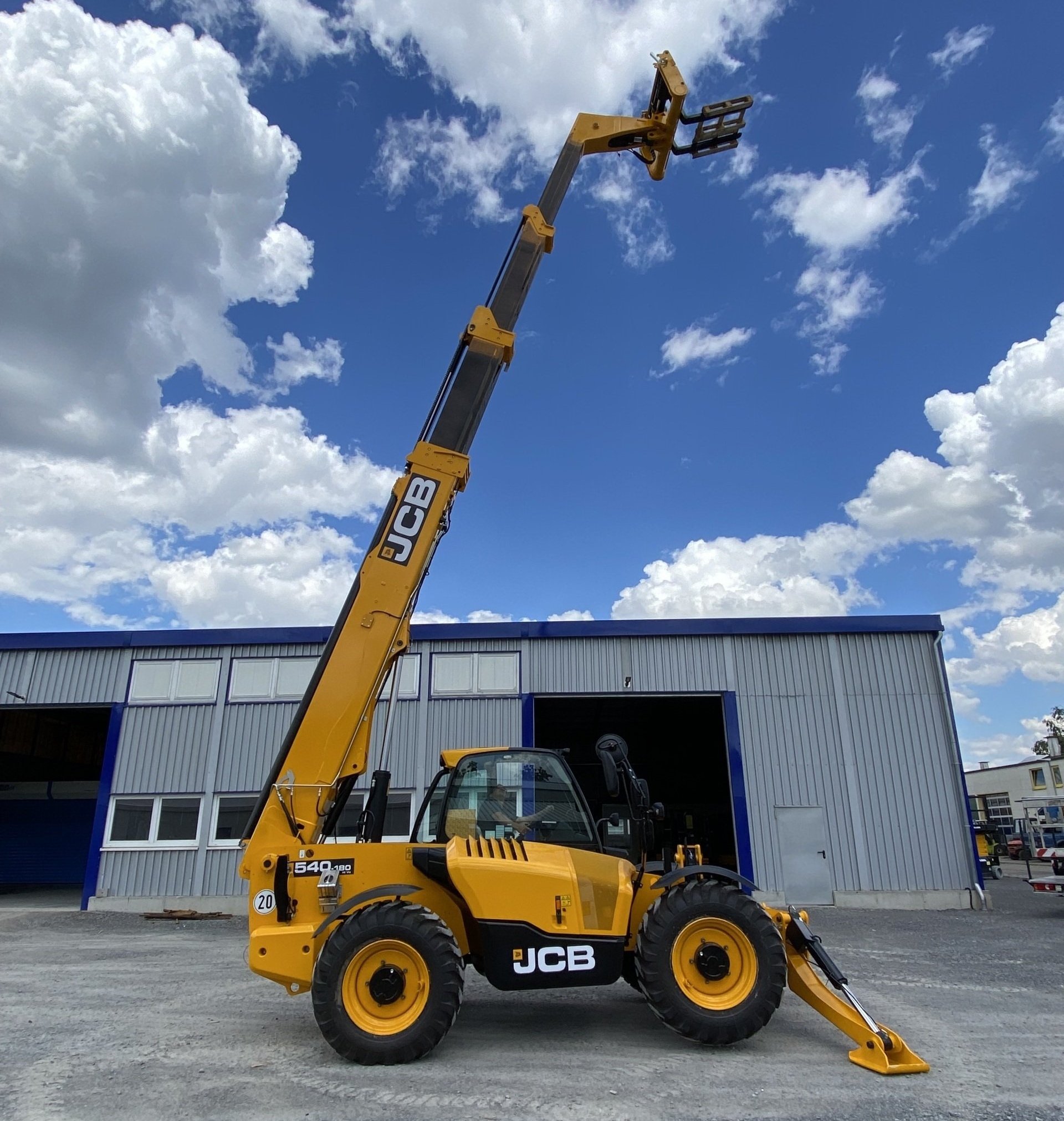

Depending on requirements, the telescopic forklift can be used with a shovel, crane hook or forks.
Click the QR code and download the data sheet as
Download PDF
Weitere Informationen über HAB Engineering GmbH finden Sie unter/ Please find further information about HAB Engineering GmbH on www.hab-sales.com. I *Technische Daten und Illustrationen können ohne vorherige Ankündigung oder Verbindlichkeit geändert werden. /All technical features, descriptions and illustration are subject to change without prior notice. I **e = Stützen eingefahren / a = ausgefahren I e =elevated stabilizers / l =lowered. I Kontakt/Contact: info@hab-sales.com
