“A telescopic platform must be suitable for off-road use. A basket load of up to 350 kg is also a must these days.”
At HAB you will find first-class, high-quality work platforms that differ from the standard. We attach great importance to a stable construction, ease of maintenance, a compact design and power. Quality components such as modern engines make electric platforms more efficient and our diesel devices have low emissions thanks to the fact that they are equipped with a soot particle filter.
Telescopic work platform with 5m basket
| T24 D4WD | Technical specifications |
|---|---|

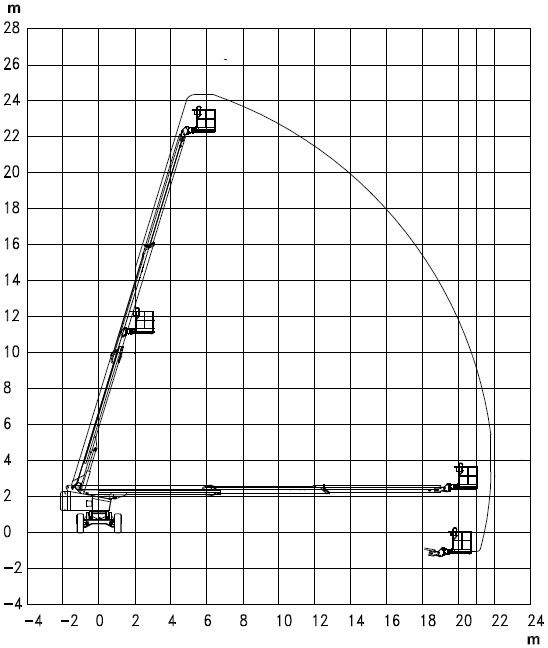

| Arbeitshöhe I Working height (A) | 24.30 m |
| Plattformhöhe I Platform height (B) | 22.30 m |
| Platform dimension I Platform size (C) | 5.00 m/2.00 m x 0.80 m |
| Lateral reach I Horizontal reach (D) | 21.50 m |
| Radstand I Wheelbase | 2500 mm |
| Ground clearance I Ground clearance | 400 mm |
| Nennlast I Capacity | 250 kg / 400kg |
| Platform swivel range I Platform rotation | /-90° |
| Jib swing range I Vertical jib rotation | - |
| Upper structure overhang I tailswing | 895 mm |
| Driving speed in km/h (e/a) I Drive speed km/h (e/l)** | 5.0/5.0 |
| Gradeability I Gradeability | 45% |
| Outer turning radius I Outer turning radius | 7.38 m |
| Inner turning radius I Inner turning radius | 1.94 m |
| Control I Controls | Proportional |
| Drive type I Power | D |
| Combustion engine I power source | 55.4 kW |
| Own weight I Weight | 19.500 kg |
| Pendelachse I Oscillating axle | Yes |
| Transporthöhe I Stowed height (E) | 2.65 m |
| Transportlänge I Length (F) | 11.05 m |
| Transportbreite I Width (G) | 2.47 m |
Click on the QR code and save the data sheet
Download PDF
This model can be used with a large 5m basket and 250kg net load, which can be converted to a 2m basket with 400kg capacity.
Further information about HAB Engineering GmbH can be found at Please find further information about HAB Engineering GmbH on www.hab-sales.com. I *Technical data and illustrations are subject to change without notice or liability. /All technical features, descriptions and illustrations are subject to change without prior notice. I **e = retracted / a = extended I e =elevated / l =lowered. I Contact: info@hab-sales.com
